Description

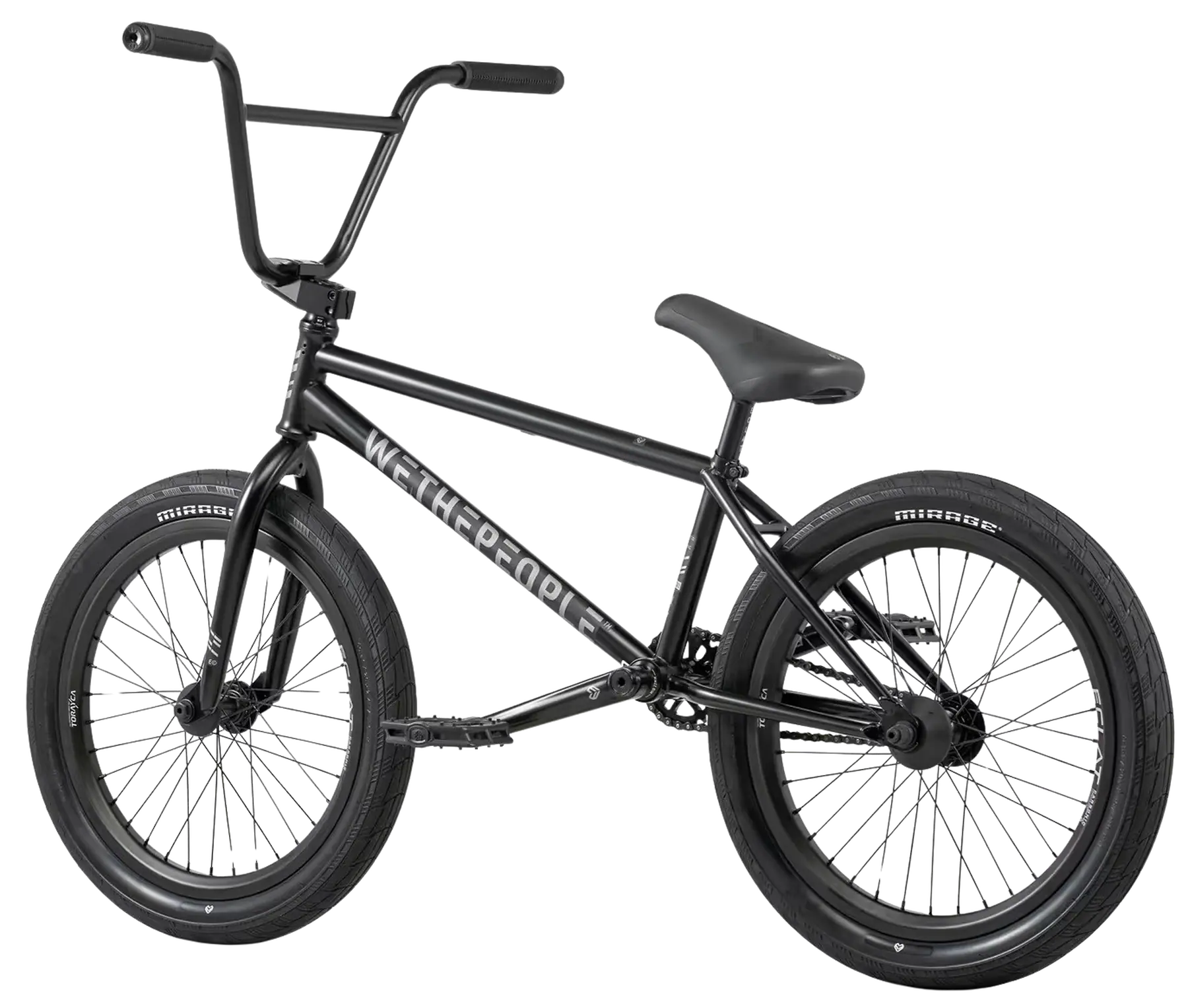

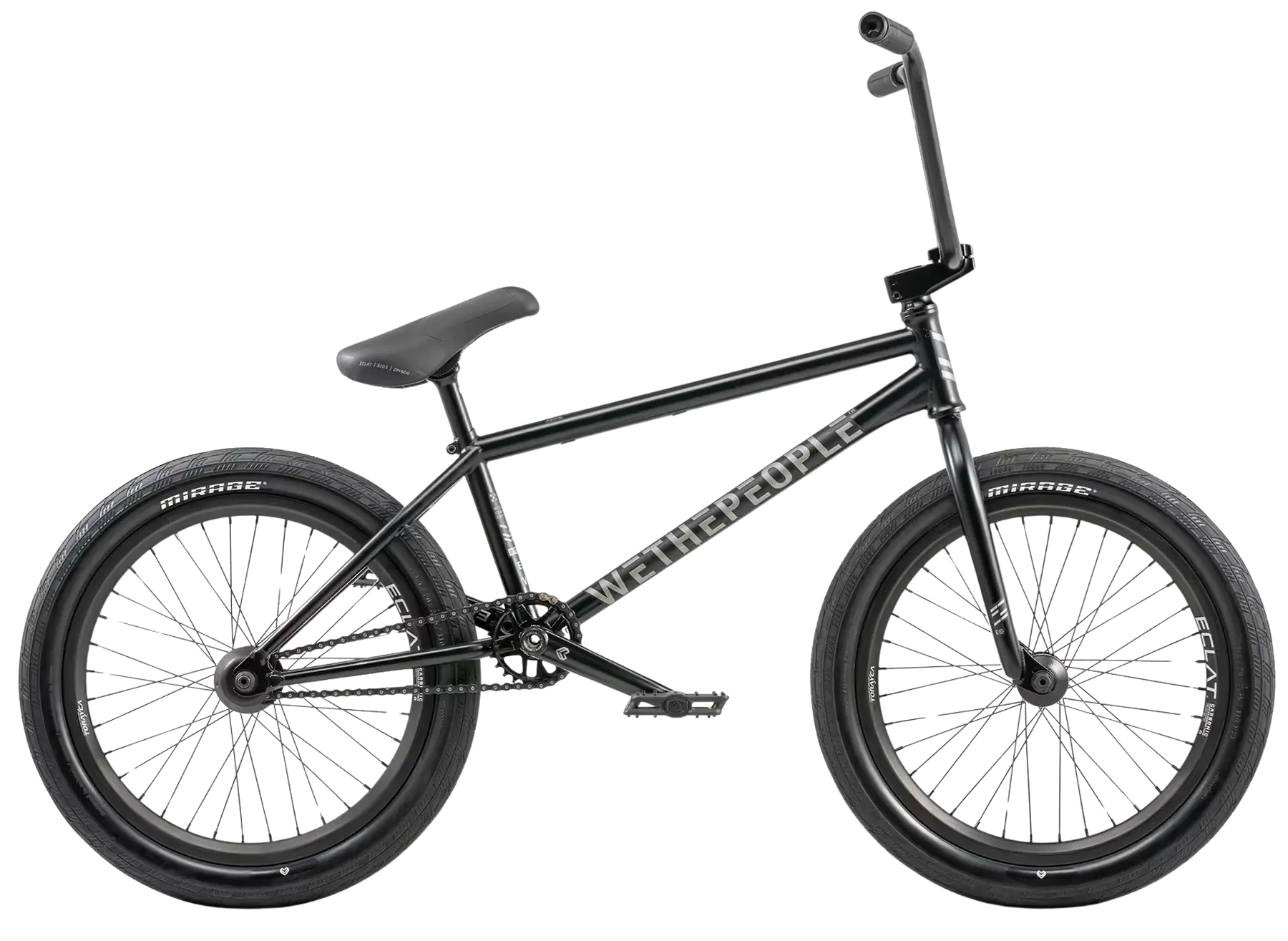

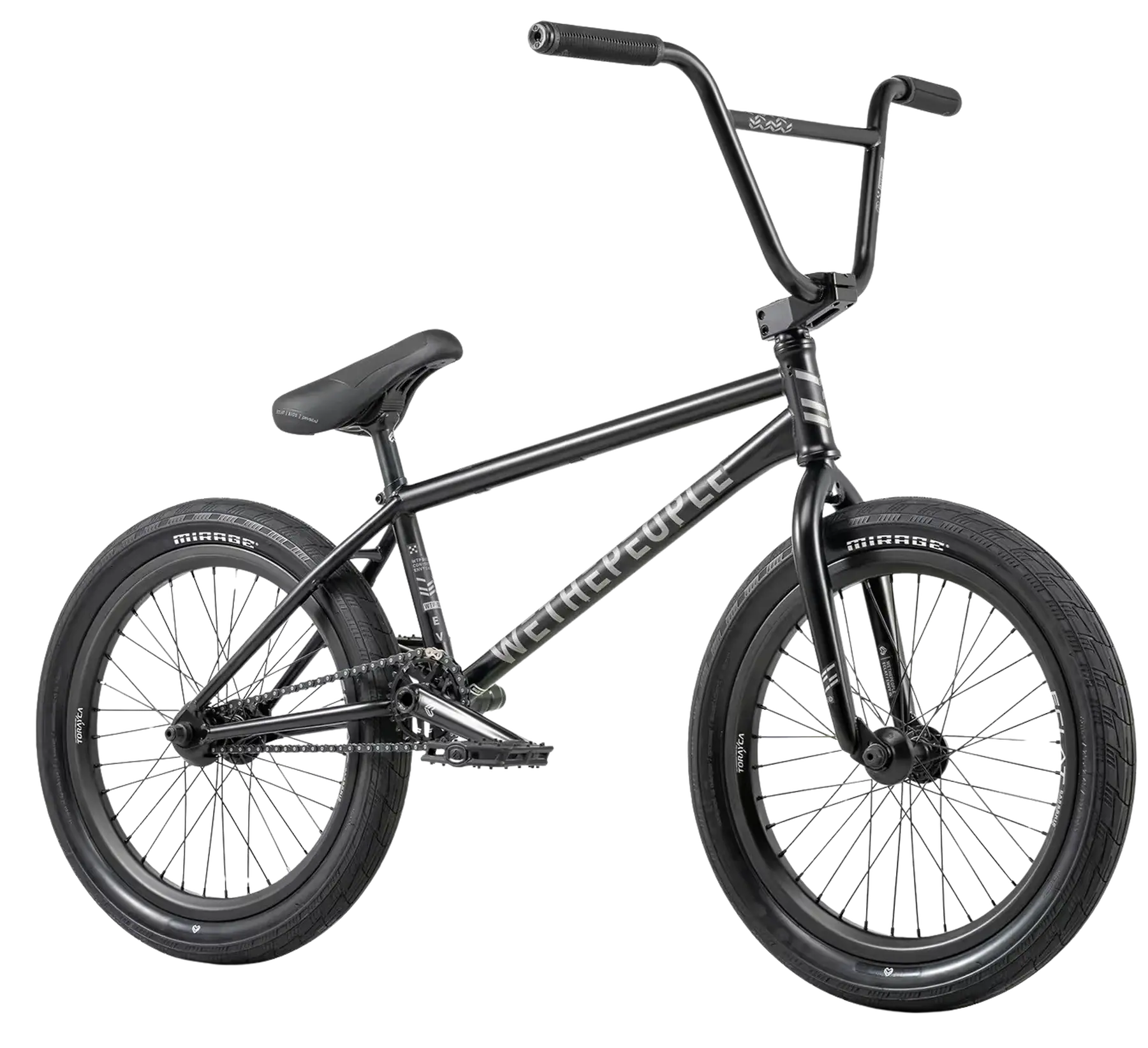

This bike is a high-performance BMX designed for street and park. A classic cassette hub ensures easy maintenance and fast acceleration. The frame is built with strong but light Chromoly steel.
- 3-piece crank for strength and reliabilty
- Long 170 mm crank arms with increased control for airs
- The short chainstay offers increased responsiveness
- Designed with mounting holes for gyro brakes
- Coming with a responsive and easy to maintain U-brake
- The handlebar on this bike has a backsweep of 10.5°
- It is equipped with standard size 20″ wheels.
- Both rims are built with a double-walled construction
| Wheel diameter: | 20″ |
| Frame Top Tube: | 20.5″ (52.1 cm), 21″ (53.3cm) |
| Bar design: | Two-piece |
| Bar height: | 9.4″ (23.9cm) |
| Bar width: | 29.8″ (75.7cm) |
| Backsweep: | 10.5° |
| Upsweep: | 2° |
| Hub: | Cassette, Sealed bearings |
| Weight: | 10.81kg |
| Frame material: | Chromoly Steel |
| Seat clamp: | Integrated |
| Seat: | Pivotal |
| Seatpost Length: | 230mm |
| Tire width: | 2.45″ |
| Back tire width: | 2.35″ |
| Pegs: | Not included |
| Axle diameter: | 10mm, 14mm |
| Wheel offset: | 24mm |
| Dropout size: | 6mm |
| Stem type/Length: | 50mm, Top load |
| Stem diameter: | 25.4mm |
| Headset type: | Integrated 1 1/8″ |
| Headtube angle: | 75.25° |
| BMX Brake Included: | Caliper Brake (Front), U-brake (Rear) |
| Gyro compatible: | Yes |
| Gyro System included: | No |
| Gear ratio: | 25/9 |
| Crank Length/Type: | 170mm, Three-piece |
| Pedal axle diameter: | 9/16″ |
| Sprocket mounting: | 22mm, 48-spline, Bolt Drive |
| Crank material: | Chromoly Steel |
| Bottom Bracket: | Mid, Sealed |
| Crank Axle Diameter: | 24mm |
| Pedal material: | Fiberglass, Nylon |
| Number of spokes: | 36 |
| BMX Rim Type: | Double-walled rear rim, Double-walled front rim |
| Chain type: | Single speed |
| Assembly: | Partly assembled |
