Description

AIRCRAFT

Takeoff Weight	<<249 g [1] * The standard weight of the aircraft including the Intelligent Flight Battery, propellers, and a microSD card. Actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
Dimensions (L×W×H)	Folded (without propellers): 148×90×62 mm (L×W×H) Unfolded (with propellers): 251×362×72 mm (L×W×H)
Diagonal Length	247 mm
Max Ascent Speed	5 m/s
Max Descent Speed	3.5 m/s
Max Speed (at sea level, no wind) [2]	16 m/s * Max flight speed is subject to local restrictions that may change. Please abide by local laws and regulations when flying.
Max Service Ceiling Above Sea Level	With Intelligent Flight Battery: 4000 m With Intelligent Flight Battery Plus [7]: 3000 m [3] * Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid a lack of propulsion.
Max Flight Time	38 minutes (with Intelligent Flight Battery and flying forward at a constant speed of 21.6 kph in a windless environment) 51 minutes (with Intelligent Flight Battery Plus and flying forward at a constant speed of 21.6 kph in a windless environment)
Max Hovering Time	33 minutes (with Intelligent Flight Battery and in a windless environment) 44 minutes (with Intelligent Flight Battery Plus and in a windless environment)
Max Flight Distance	18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) 25 km (with Intelligent Flight Battery Plus [7] and measured while flying at 43.2 kph in windless conditions)
Max Wind Speed Resistance	10.7 m/s (Level 5)
Max Tilt Angle	40°
Operating Temperature	-10° to 40° C (14° to 104° F)
Global Navigation Satellite System (GNSS)	GPS + GLONASS + Galileo
Hovering Accuracy Range	Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GNSS positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GNSS positioning)
Internal Storage	N/A

SENSING

Sensing Type	Downward vision system
Downward	Precise Hovering Range: 0.5-10 m
Operating Environment	Diffuse reflective surfaces with a clear pattern and reflectivity > 20% (such as walls, trees, or people) Adequate lighting (lux > 15, normal indoor lighting conditions)

GIMBAL

Stabilization	3-axis mechanical gimbal (tilt, roll, and pan)
Mechanical Range	Tilt: -135° to 80° Roll: -135° to 45° Pan: -30° to 30°
Controllable Range	Tilt: -90° to 60° Roll: -90° or 0°
Max Control Speed (tilt)	100°/s
Angular Vibration Range	±0,01°

STORAGE

Supported Memory Cards

UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below.

Recommended microSD Cards

SanDisk Extreme 32GB V30 A1 microSDXC
SanDisk Extreme 64GB V30 A1 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme Pro 32GB V30 A1 microSDXC
Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
Kingston Canvas Go!Plus 128GB V30 A2 microSDXC
Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V30 A1 microSDXC
Kingston Canvas React Plus 128GB V30 A1 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC

DJI RC-N1 REMOTE CONTROLLER

Transmitter Power (EIRP)	2,400-2,4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5,725-5,850 GHz: < 26 dBm (FCC) < 23 dBm (SRRC) < 14 dBm (CE)
Max Size of Supported Mobile Devices	Length: 180 mm, Width: 86 mm, Height: 10 mm
Supported Types of Ports	Lightning, Micro USB (Type-B), USB-C
Max Time of Battery Work	6 hrs (without charging any mobile device) 4 hrs (when charging a mobile device)
Range of Operating Temperature	-10° to 40° C (14° to 104° F)

CAMERA

Sensor	1/1.3-inch CMOS Effective Pixels：12MP
Lens	FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞
ISO Range	Video: 100-3200 Photo: 100-3200
Shutter Speed	Electronic Shutter: 2-1/8000 s
Max Image Size	4000×3000
Still Photography Modes	Single Shot: 12 MP Timed: 12 MP JPEG: 2/3/5/7/10/15/20/30/60 s JPEG + RAW: 5/7/10/15/20/30/60 s Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step Panorama: Sphere, 180°, Wide Angle HDR: The Single Shot mode supports outputting HDR images.
Photo Format	JPEG/DNG (RAW)
Video Resolution	4K: 3840×2160@24/25/30 fps 2.7K: 2720×1530@24/25/30/48/50/60 fps FHD: 1920×1080@24/25/30/48/50/60 fps HDR: Recording with the 24/25/30fps frame rate supports outputting HDR images.
Video Format	MP4 (H.264)
Max Video Bitrate	100 Mbps
Zoom Range	4K: 2x 2,7K: 3x FHD: 4x
QuickShot Modes	Dronie, Helix, Rocket, Circle, and Boomerang
Color Profiles	Normal
Supported File System	FAT32 (≤32 GB) exFAT (>32 GB)

INTELLIGENT FLIGHT BATTERY

Capacity	2453 mAh
Weight	80,5 g
Voltage	7,38 V
Charging Voltage Limit	8,5 V
Battery Type	Li-Ion
Energy and Infrastructure	18,1 Wh
Charging Temperature	5° to 40° C (41° to 104° F)
Charging Time	64 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)

VIDEO TRANSMISSION

Video Transmission System	DJI O2
Live View Quality	RC: 720p/30fps
Operation Frequency	2.400-2.4835 GHz 5.725-5.850 GHz
Transmitter Power (EIRP)	2.400-2.4835 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850GHz: < 26 dBm (FCC/SRRC) < 14 dBm (CE)
Max Transmission Distance (free of interference)	FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
Max Transmission Distance (with interference)	Strong Interference: urban landscape, approx. 1.5-3 km Medium Interference: suburban landscape, approx. 3-6 km Low Interference: suburb/seaside, approx. 6-10 km Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.
Max Download Speed	DJI O2: 5.5 MB/s (with DJI RC-N1 Remote Controller) 5.5 MB/s (with DJI RC) Wi-Fi 5: 25 MB/s* * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the SD card. Download speeds may vary depending on the actual conditions.
Lowest Latency	Approx. 200 ms Depending on the actual environment and mobile device.
Antennas	2 antennas, 1T2R

BATTERY CHARGER

Recommended Charger	DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)* * When you charge the battery mounted to the aircraft or inserted into the Two-Way Charging Hub, the maximum charging power supported is 30 W.

CHARGING HUB

Input	5 V, 3 A 9 V, 3 A 12 V, 3 A
Output	USB-A: Max Voltage: 5 V; Max Current: 2 A
Charging Type	Three batteries charged in sequence
Compatible Batteries	DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus* * Sold separately and only in selected countries and regions.

APP

Mobile Device App	DJI Fly
Required Operating System	iOS v11.0 or later Android v6.0 or later

Additional information

Weight	0,5 kg

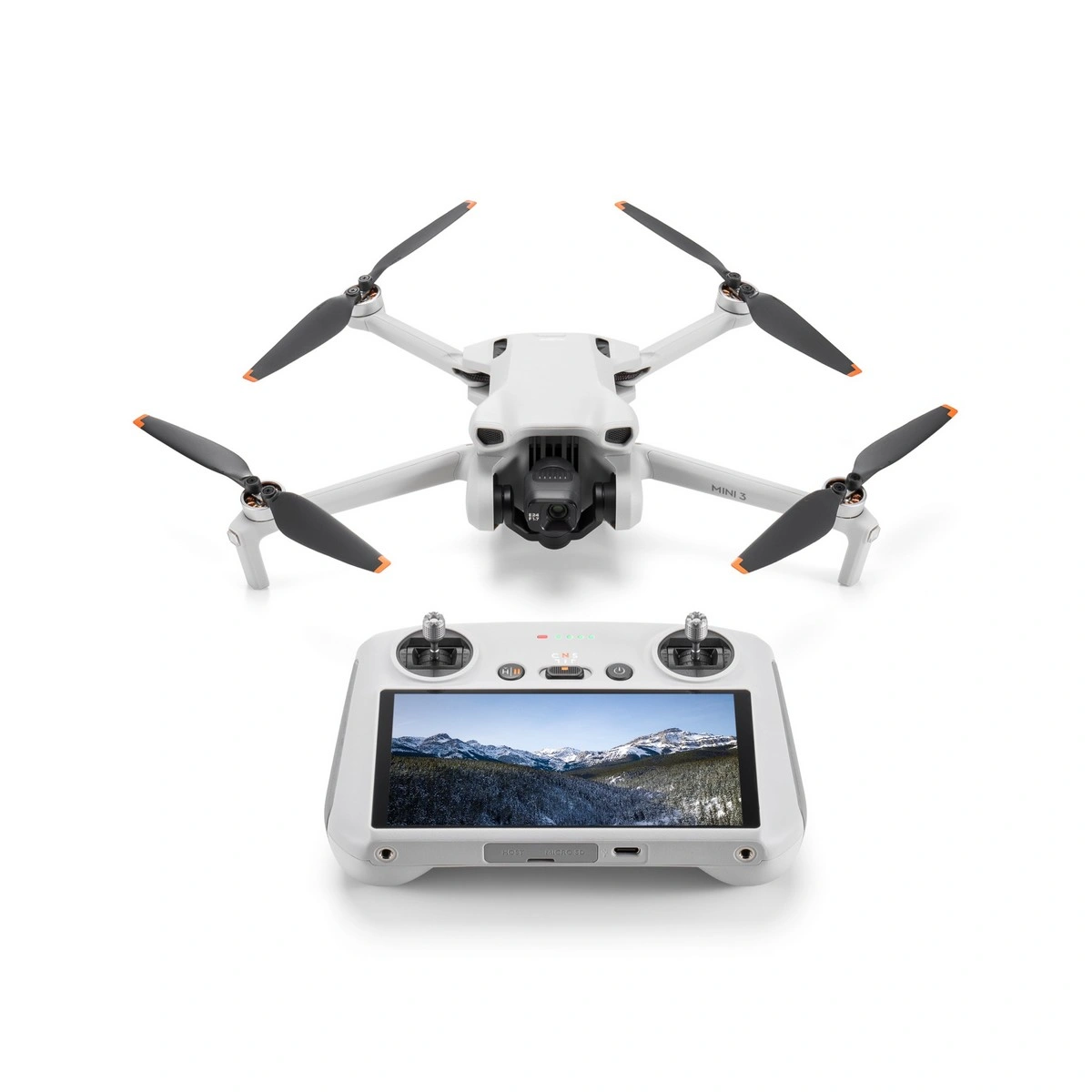

DJI Mini 3 (DJI RC)
